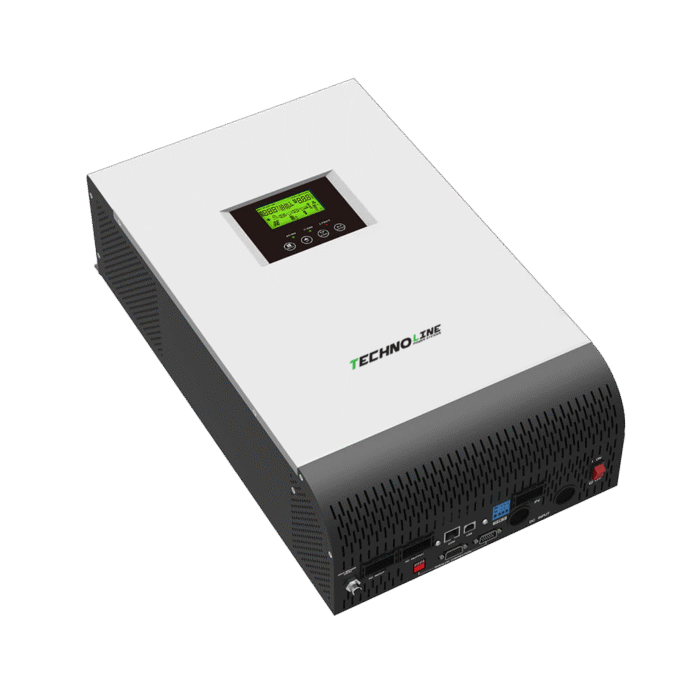

INVERTER OMEGA 1500VA VN II
Pure Sine Wave Power Inverter 1500VA | DC 12V | AC 230V
is a pure sine wave inverter, high frequency machine solution, the product is small size, the solution is reliable and stable, the main function is to invert the DC 12VDC battery to AC 230VAC output, mainly used for emergency use Electricity, car inverter, outdoor electricity and other occasions.
| MODEL |
OMEGA VN II 1500 |
OMEGA VN II 3000 |
| Part Number |
TLINVOMVN15 |
TLINVOMVN30 |
| Rated Power |
1500VA/1500W |
3000VA/3000W |
| INPUT | ||
| Voltage |
230 VAC |
|
| Selectable Voltage Range |
170-280 VAC (For Personal Computers) |
|
| Frequency Range |
50 Hz/60 Hz (Auto sensing) |
|
| OUTPUT | ||
| AC Voltage Regulation (Batt. Mode) |
230VAC ± 5% |
|
| Surge Power |
3000VA |
4800VA |
| Efficiency (Peak) BAT to INV |
94% |
|
| Efficiency (Peak) PV to INV |
97% |
|
| Transfer Time |
10 ms (For Personal Computers) |
|
| Waveform |
Pure sine wave |
|
| SOLAR CHARGER & AC CHARGER | ||
| Maximum PV Array Open Circuit Voltage |
450 VDC |
|
| Maximum PV Array Power |
2000W |
3000W |
| MPP Range @ Operating Voltage |
120 ~ 450 VDC |
|
| Maxmum Solar Charge Current |
80A |
|
| Maximum AC Charge Current |
60A |
|
| Maximum Charge Current |
80A |
|
| Maximum Efficiency |
98% |
|
| BATTERY | ||
| Battery Voltage |
12 VDC |
24 VDC |
| Floating Charge Voltage |
13.5 VDC |
27 VDC |
| Overcharge Protection |
16 VDC |
33 VDC |
| PHYSICAL | ||
| Dimension, D x W x H (mm) |
348 x 270 x 95 |
|
| Net Weight (kgs) |
4.5 |
5 |
| Communication Interface |
RS232/WIFI Optional |
|
| OPERATING ENVIRONMENT | ||
| Humidity |
5% to 95% Relative Humidity (Non-condensing) |
|
| Operating Temperature |
0°C to 55°C |
|
| Storage Temperature |
-15°C to 60°C |
|
